Locating Objects By Relative Measurement Or Baseline

No one says you have to use surveying instruments or high-tech methods to map objects. Depending on your need for accuracy, you may be able to use simple and straightforward methods that have been in use at least since the ancient Egyptians, accomplished land surveyors.

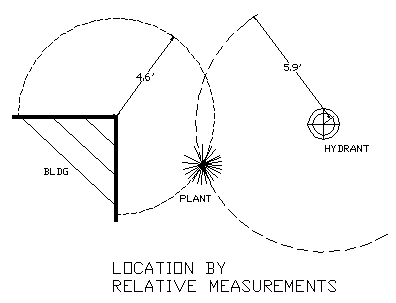

BG-Map automatically offers the convenience of adding a plant using relative measurements, and this method is valid for adding any object to a map. If you have two objects already mapped nearby, you can swing your tape to the unknown point and plot it at the intersection of the two distances. The illustration shows these "swing-ties" taken from a building corner and a hydrant. Notice that there are two points of intersection of the ties and that you must be careful to note the relative position of the new object accordingly. You may do this with a good sketch in the field book, so that when you return to the office you don't have to rely on memory.

The accuracy of this method varies with several factors: first, the accuracy of the location of the already-mapped objects; second, the alignment of the 3 objects; third, the precision of the distances. Use objects that have acceptably firm locations and limit the use of just-located objects as measuring points. Try to create a broad-based triangle between the measuring points and the new object. If all the objects are in a straight line you will get the least reliable location. When measuring be sure to pull the tape horizontally tight and to measure from the exact same points: that is, the building corner depicted on the drawing, the top center of the hydrant and the approximate center of the plant. Adding a measurement to a third known object will give better accuracy to the new object's location. It will also probably create an overlap of the 3 circles when you swing the distances for your map. The most probable location of the object is in the middle of the overlap, unless it is very large, which is a good indication of an erroneous distance or other problem.

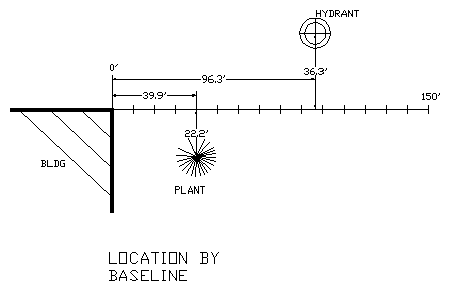

The illustration of the baseline method uses the prolongation of the building face as the baseline, but you may use any alignment between known objects where you can lay down or orient a tape measure. Assign a zero value to one end of the baseline, and determine the distance along the line to the right angle offset of the object to locate. By noting the distance along the baseline and by measuring at a right angle to the tape you can assign a unique location to the new object. The tricky part is the right angle. Right angle prisms can be used for this type of work. But, most often, the measurer stands astride the baseline facing the object, points his hands to both ends of the line, and claps them together in front in front of himself. This will show where a projected right angle would strike relative to the object. The measurer then adjusts his stance along the baseline to the appropriate point. With two people, one can hold at the object, and the other can swing the tape along the baseline to get a good visual estimate of the relation of two physical lines and better estimate the right angle location.

The weakness of this system is that, the further from the baseline you go, the less reliable will be the location since the accuracy depends on an angular estimate. You must also take care to note whether the offset is left or right of the baseline as you travel from the zero point.

- TO BE CONTINUED -
